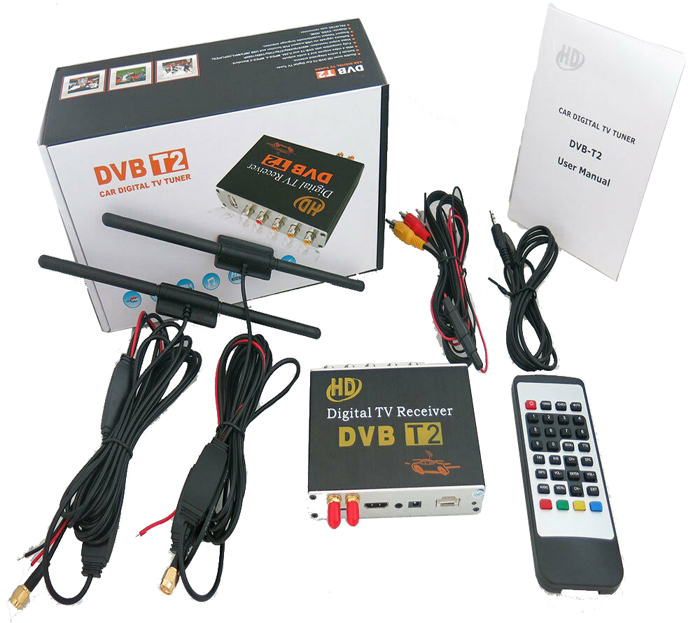

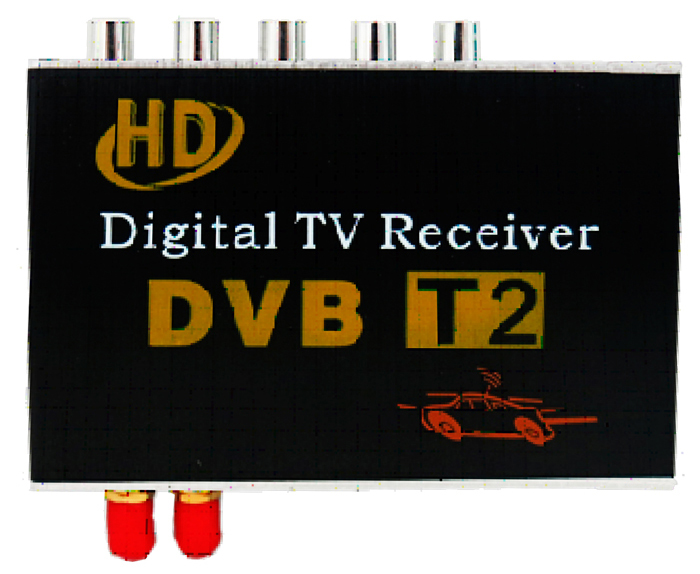

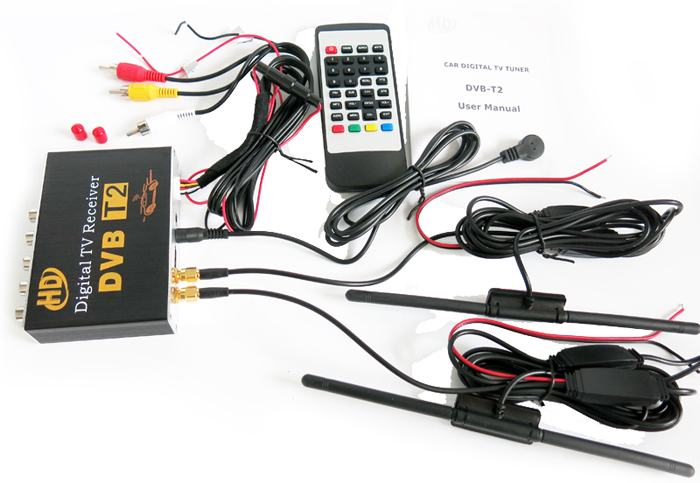

Display on car multimedia screen via AV input and controlled by
remote control from our Digital TV box DVB-T2718
Applicable Model:
For car dvd,Overhead,Headrestand so on.
Features
1. Fully compatible with DVB-T2 and H.264, MPEG-4, MPEG-2 Standard
2. The maximum speed of the traffic flow of at least 50 Mbit / sec
3. Support PVR function and multimedia playback(MP3/MP4/JPEG/AVI
etc) via USB2.0
4. Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P.
5. Video decoder up to 1080p@30fps (Full HD, support up to 1080P)
6. Fully support to 7 days Electronic Program Guide(EPG)
7. Capacity for storing up to 1000 channels of TV and radio
programs
8. Various channel editing function (favorite, move, lock, skip,
delete, rename, find, sort)
9. Software upgrade via USB,support PVR function and USB
(MP3/MP4,3GP/JPEG)
10. Auto/Manual channel search function
11. OSD language: Thailand, Russian,English (any language can be
added)
12. Support Teletext /subtitle/audio language selection

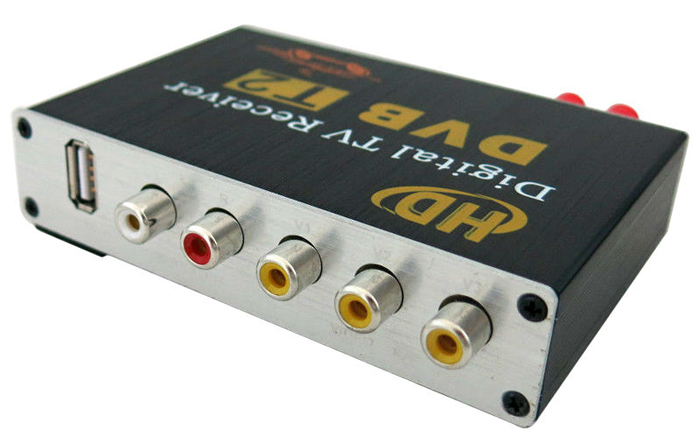

13. Outputs: CVBS, HDMI
14. PAL/NTSC auto conversion
15. Speed : 80-120km/h
Technical Specification
2.1 Tuner
RF Input UHF: 474 MHz ~ 858MHz
VHF: 174 MHz ~ 230 MHz
Input Impedance 75Ω
Signal Level -81dBm ~ -20dBm
Connector Type SMA Terminal jack
Channel Band Width 7M/8M
2.2 Demodulator
Standard DVB-T EN300 744 /DVB-T2EN302 755
Constellation QPSK,16QAM,64QAM,256QAM
Guard Interval 1/32,1/16,1/8,1/4
FEC 1/2,2/3,3/4,5/6,7/8
COFDM Carrier Mode 2K And 8k Non Hierarchical/Hierarchical
Mobility High Speed
2.3 Vedio decode
Standard MPEG-2 MP@HL MPEG-4 AVC/H.264 HP@L4
Transport Stream ISO/IEC 13818-1 MP2/MP4 AVC/H.264
Video Aspect Ratio 4:3 /16:9
Video System PAL/NTSC
Video Output 1 ± 0.3Vpp
Video Resolution
Y Pr Pb Resolution 720*576@25fps or 720*480@30fps
HD 1920x1080i/1920x720p/1920x1080p
2.4 Audio decode
Standard ISO/IEC 11172-3
Audio Decoder MPEG-2 / HE_AAC(DD/DD+ optional)
Audio Channel R/L/ST
Audio Output 1Vpp 47Kohm Adjustable With E Volume
General
MPEG-2/MPEG-4 AVC/H.264 MSTAR MSD7816 32bit 216MHz RISC CPU
Flash Memory 16/32 Mega bit
DDR2 SDRAM 64/128 Mega bit
Operating Temperature -15℃ ~ +50℃
Storage Temperature: -20℃ ~ +60℃
Power Supply DC +12V ±10%
Power Consumption Running : 4.8W Max
Dimension 14*7.5*2.5 CM
DVB-T2 countries:
Russia, Indonesia, Thailand, Singapore, Britain, Italy, Sweden,
Finland, Ukraine, Denmark, Colombia, Israeli, Serbia, Kenya,
Vietnam, Belgium, Albania, Turkey, South Africa, Spain, Germany,
Sri Lanka, Austria, Malaysia
Note: This item can't be used in Brazil and America
Our Warranty Service
Your satisfaction is our priority, all of our products comes with a
24 month Warranty.
We will not provide repair freely for the following situation:
1. Improper repair and refit in other place expect our company
admitted maintenance station.
2. Any failure and damage caused by accident and misuse.
3. Any failure and damage caused by fall-off after the customer
bought.
4. Any failure and damage caused by fire, earthquake,
flood,lightning strike and other natural disaster.
5. Any failure and damage caused by the products are not
manufactured by our company.
6. Any failure caused by lamp blank, dust, water, direct sunlight
etc.
7. Any failure and damage caused by worked long time in the place
of ship or industry and commerce.
8. The details of the warranty car is incomplete or altered and
removed.
9. The serial No. on the product has been removed or altered.
